Author Topic: stabilizing an engine on wood blocks in shop  (Read 3129 times)
RickB
Hero Member
*****
Offline Offline

Posts: 1178


81 MCI 9 smooth side 8V71 Allison 754




Ignore
« on: January 04, 2010, 04:04:07 PM »

I got my 8V92 propped on both ends with 2X6's but it's pretty tippy. Can I use a jack against the oil cooler and the starter as side stabilizers? I have to admit moving this thing scares the crap out of me!

Got it in my brother in law's heated shop, can't wait to get to work on it.

Rick
Logged

I will drive my Detroit hard... I will drive my Detroit hard.
luvrbus
Hero Member
*****
Online Online

Posts: 18501




Ignore
« Reply #1 on: January 04, 2010, 04:52:03 PM »

Not a good idea Rick make a stand out of 4 in channel takes 14 ft min be safe use it for your 8v92 then use on your 71 to store it or shipment

good luck
« Last Edit: January 04, 2010, 05:01:02 PM by luvrbus » Logged

Life is short drink the good wine first
grantgoold
Hero Member
*****
Offline Offline

Posts: 1084





Ignore
« Reply #2 on: January 04, 2010, 05:05:46 PM »

If you have a maintenance manual or parts book for the 9 you should also have the blueprint for an engine cradle. If not someone should be able to scan it for you or perhaps even MCI can send you a PDF.

Seemed pretty simple with some steel plate, casters and a good welder.

Grant
Logged

Grant Goold
1984 MCI 9
Way in Over My Head!
Citrus Heights, California
luvrbus
Hero Member
*****
Online Online

Posts: 18501




Ignore
« Reply #3 on: January 04, 2010, 05:09:30 PM »

I am not talking dolly here Rick just a simple stand for a Detroit

good luck
Logged

Life is short drink the good wine first
HB of CJ
Hero Member
*****
Offline Offline

Posts: 1711




Ignore
« Reply #4 on: January 04, 2010, 06:57:42 PM »

grantgoold has it perfectly correct.  These mills are just too big and heavy to leave around just setting on wood blocks.  Like already said, DD shop manuals include the blueprints/sketches for making a steel wheel dolly frame that lets the engine sit on the block/pan.

We made our own years ago when putting 353 and 453 DD's into Ford 1-ton flatbed farm trucks.  The engine stand just looked like an ordinary automotive gas car engine model only it was about five times as big and heavy.  Rotated tooos.  Good luck.  HB of CJ (old coot)
Logged
luvrbus
Hero Member
*****
Online Online

Posts: 18501




Ignore
« Reply #5 on: January 04, 2010, 07:14:37 PM »

No HB Grant is talking about a dolly to roll the engine out using the drawing from MCI that is all it is good for the oil pan sets down into it and the engine rests on the block and oil pan bolts.
A good rotating engine stand heavy enough to handle a 8v92 cost in the neighborhood of 10 grand installed fwiw i just priced one.
Rick can build a stand for the engine for around a 100 bucks

good luck
Logged

Life is short drink the good wine first
JohnEd
Hero Member
*****
Offline Offline

Posts: 4571




Ignore
« Reply #6 on: January 04, 2010, 08:13:07 PM »

 I dropped an engine once.  Tiped over the 3 legged stand.  Thing that amazed me was that it seemed to fall so slowly.  Had I been the very slightest bit quicker I could gotten a leg in front of it so I would have had better leverage AND LOST MY LEG.  Instincts will sometimes KILL you.  Get hot on that stand/cradle/rack/???  Just get it done my friend.

John not limping
Logged

"An uneducated vote is a treasonous act more damaging than any treachery of the battlefield.
The price of apathy towards public affairs is to be ruled by evil men." Plato
“We can easily forgive a child who is afraid of the dark; the real tragedy of life is when men are afraid of the light.”
—Pla
Iver
Full Member
***
Offline Offline

Posts: 188


1979 MCI-9




Ignore
« Reply #7 on: January 05, 2010, 12:36:33 AM »

This is the dolly I built using the blueprints in the MCI manual.  The only change I made was to separate the top half which supports the oil pan bolts so I could remove it and use the dolly for something else if needed. Also added the extra wheels for support.  Not too expensive to build if you have a source for the steel.
        Iver.
Logged

Abbotsford, British Columbia, Canada
"Life may not be the party we hoped for,
But while we are here we might as well dance".
gumpy
Some Assembly Required
Hero Member
*****
Offline Offline

Posts: 4019


Slightly modified 1982 MC9


WWW

Ignore
« Reply #8 on: January 05, 2010, 04:52:23 AM »

Rick,

Discount Steel in Minneapolis is the place to buy steel if you need it. They're off 94 on Washington, I think. Just north of Broadway.

Let me know if you need any help with this.

Craig
Logged

Craig Shepard
Located in Minnesquito

http://bus.gumpydog.com - "Some Assembly Required"
JackConrad
Orange Blossom Special II
Global Moderator
Hero Member
*****
Offline Offline

Posts: 4448


73' MC-8 8V71/HT740 Southwest Florida


WWW
« Reply #9 on: January 05, 2010, 05:14:33 AM »

If the stand is simply for storage and not working on the engine, here is what I madeout of a few pieces of 2X10 (front view).  Jack
Logged

Growing Older Is Mandatory, Growing Up Is Optional
Arcadia, Florida, When we are home
http://s682.photobucket.com/albums/vv186/OBS-JC/
JackConrad
Orange Blossom Special II
Global Moderator
Hero Member
*****
Offline Offline

Posts: 4448


73' MC-8 8V71/HT740 Southwest Florida


WWW
« Reply #10 on: January 05, 2010, 05:18:16 AM »

If the stand is simply for storage and not working on the engine, here is what I made out of a few pieces of 2X10 (rear view).  Jack
Logged

Growing Older Is Mandatory, Growing Up Is Optional
Arcadia, Florida, When we are home
http://s682.photobucket.com/albums/vv186/OBS-JC/
Paso One
Hero Member
*****
Offline Offline

Posts: 570





Ignore
« Reply #11 on: January 05, 2010, 05:40:10 AM »

When I removed my 6V71 I lowered it onto a double pallet the longer pallet gave it the support and the lower pallet allowed me to move it around the shop on a simple pallet jack.

I have both the donor engine and the replacement engine sitting that way in the shop right now.
Logged

68 5303 Fishbowl 40' x 102" 6V92 V730  PS, Air shift  4:10
1996 MCI 102 D3
RickB
Hero Member
*****
Offline Offline

Posts: 1178


81 MCI 9 smooth side 8V71 Allison 754




Ignore
« Reply #12 on: January 05, 2010, 06:01:50 AM »

Iver
Do you have a way of copying and sending those blueprints for the stand if you still have them?
Craig
Thanks for the offer and if curt from central diesel doesn't have one already built that works for my motor I'll take you up on it. He said he has 3 or 4 already built.
Hope one of them fits.
Thanks for the input guys I will try and be safe
Rick
Logged

I will drive my Detroit hard... I will drive my Detroit hard.
RickB
Hero Member
*****
Offline Offline

Posts: 1178


81 MCI 9 smooth side 8V71 Allison 754




Ignore
« Reply #13 on: January 05, 2010, 07:28:18 AM »

My mechanic has a stand and he will let me use it to get the motor ready to start and then we'll transfer it to him on the stand.

Thanks for keeping me from getting a much smaller shoe size guys Shocked Cheesy
Logged

I will drive my Detroit hard... I will drive my Detroit hard.
Van
Newbie
Hero Member
*****
Offline Offline

Posts: 2535





Ignore
« Reply #14 on: January 05, 2010, 07:39:56 AM »

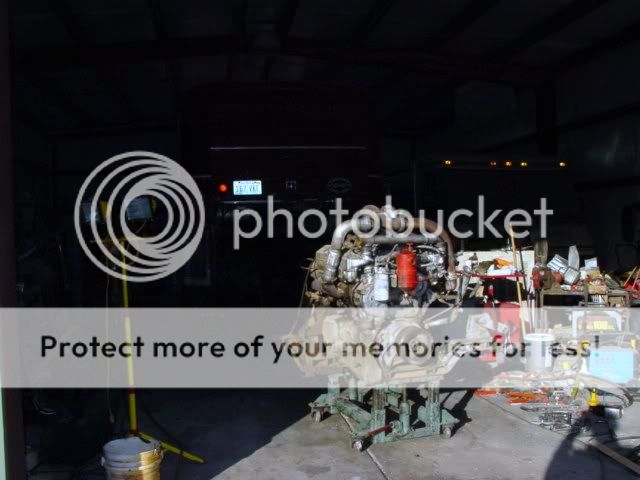

Rick this is the best shot of the one I borrowed from Gary at BB coach,It is expand able to allow for an 6V or an 8V to be cradled, bottle jacks at both ends to lift the engine off the rails.Goor luck
Logged

1989 Model 15 Predator class War Bird
muddog16
Example is more powerful than reproach. ~Aesop
Hero Member
*****
Offline Offline

Posts: 506



WWW

Ignore
« Reply #15 on: January 05, 2010, 08:07:29 AM »

So many good idea's and photo's........I'll add mine this one was made by Jasper Engines.....i paid 200 bucks for it......and its adjustable.....!  These darn engines weight enough to crush you and ruin your day.......make something that won't kill you!
« Last Edit: January 05, 2010, 08:33:27 AM by muddog16 » Logged

Pat

1982 Prevost LeMirage
8V92TA/HT754

http://prevostlemirage.blogspot.com/
RickB
Hero Member
*****
Offline Offline

Posts: 1178


81 MCI 9 smooth side 8V71 Allison 754




Ignore
« Reply #16 on: January 05, 2010, 11:02:25 AM »

Muddog
How do you like the 8v92 and the 754 powertrain?
Is your Allison a 2nd gear start?
That will be my new combo and I was wondering how they work together.
Thanks for the pics.
Rick
Logged

I will drive my Detroit hard... I will drive my Detroit hard.
muddog16
Example is more powerful than reproach. ~Aesop
Hero Member
*****
Offline Offline

Posts: 506



WWW

Ignore
« Reply #17 on: January 06, 2010, 04:47:24 AM »

Rick, since being remanufactured by Jasper it has sat in the shop being rotated once a month.....maybe this spring if it warms up......it may be installed.....i have a few items left to work out.......dual oil cooler, and power steering pump mounting.   Other than those two issues.....its finished and coupled up to the transmission....sitting there waiting on me to finish it.......I'm pretty slow! Roll Eyes Since Thanksgiving I haven't worked on the bus......its just to busy of a time! The bus keeps getting shifted to the back burner!
« Last Edit: January 06, 2010, 05:04:56 AM by muddog16 » Logged

Pat

1982 Prevost LeMirage
8V92TA/HT754

http://prevostlemirage.blogspot.com/
