Author Topic: How to prevent cabinet doors and draws from opening ???  (Read 1764 times)
Lee Bradley
Hero Member
*****
Offline Offline

Posts: 699




Ignore
« Reply #15 on: July 25, 2012, 11:21:21 AM »

My wife has very bad Rheumatoid Arthritis and so did not want cabinets that were hard to open and I wanted cabinets that would not rattle going down the road.  Our solution was a quarter-turn, compression latch; the first quarter turn turns the latch into the closed position and the second quarter turn pulls the latch in a 1/4". These are available at http://www.steelcitysupply.com/c-2620-emka-standard-quarter-turns.aspx , I used the 1022-U85 with 1022-49 latch these are not easy to find on the web site. I suggest calling and talking to Dana.
Logged
Oonrahnjay
Hero Member
*****
Offline Offline

Posts: 1343





Ignore
« Reply #16 on: July 25, 2012, 12:00:41 PM »

    Ed and others.  Thank you, these are exactly what I've spent far too much time looking for on Google and couldn't find (wrong name, I expect).  Really appreciate it.  BH
Logged

Bruce H; Wallace (near Wilmington) NC
1976 Daimler (British) Double-Decker Bus; 34' long
6-cyl, 4-stroke, Leyland O-680 engine

(New Email -- brucebearnc@ (theGoogle gmail place) .com)
Ed Hackenbruch
Hero Member
*****
Offline Offline

Posts: 2357




Ignore
« Reply #17 on: July 25, 2012, 02:10:31 PM »

I think i got and used 16 of them, kind of wish i had gotten 3-4 extra as i found that i could have used 2 or 3 more for other things.....
Logged

1968 MCI 5A with 8V71 and Allison MT644 transmission.  Western USA
Jriddle
Hero Member
*****
Offline Offline

Posts: 650





Ignore
« Reply #18 on: July 25, 2012, 06:54:14 PM »

I went to the big box store and bought child latches and the work great. The drawers and doors will open a inch or so but don't fly open.


John
Logged

If It Can't Be Grown Then It Has To Be Mined
John Riddle
Wells NV
1984 MC9
Just A Newell
Newbie
*
Offline Offline

Posts: 22





Ignore
« Reply #19 on: July 26, 2012, 08:04:20 PM »

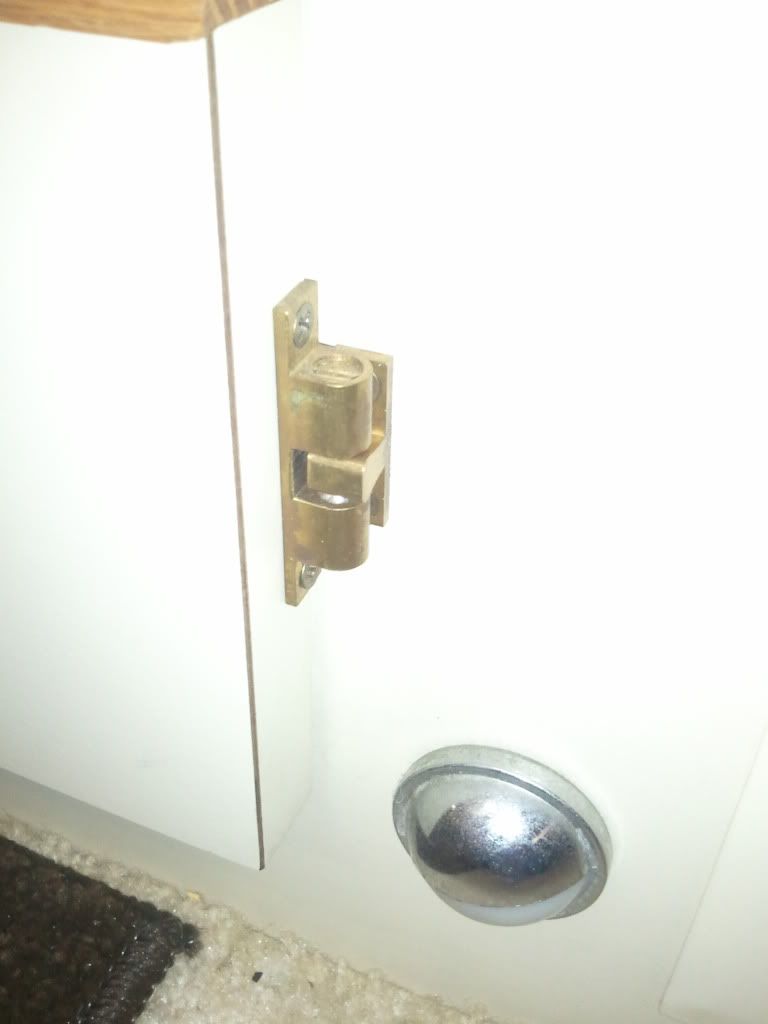

This is the latch that Newell used in the 80's. You can adjust the tension with the screws top and bottom.
Logged

SE Ks, 1986 Newell 8v92
Government does not solve problems; it subsidizes them.
Ronald Reagan
Dave Siegel
Sr. Member
****
Offline Offline

Posts: 481


Stand for something, or you'll fall for anything!


WWW

Ignore
« Reply #20 on: July 27, 2012, 06:56:49 AM »

We used these latches but got them from a local kitchen cabinet supply house for $7 each. I have one on every door and drawer in the bus.

http://www.rockler.com/product.cfm?page=1376&site=ROCKLER

P.S. I also made my upper cabinet doors swing up and they stay up with a bar top stay while open. This way they will never open while on the road and are completely out of the way while open.

Dave
Logged

Dave & Jan Siegel    1948 GMC  "Silversides"
               Naples, Florida
   Dave is Host to the "Help Assist Pages"
  (Free roadside help for Bus Conversions)
         www.help-assist-list.com
eagle19952
Hero Member
*****
Offline Offline

Posts: 826




Ignore
« Reply #21 on: July 27, 2012, 12:49:38 PM »

I have a whole (dozens) bunch of this type:(lower right corner ones cept mine the actuator buttons are square not rounded).



And in certain places the "Newell" type never had a failure....now the referidgerator..that gets a double bungeee....it can make a horrble mess...
Logged
Ed Hackenbruch
Hero Member
*****
Offline Offline

Posts: 2357




Ignore
« Reply #22 on: July 27, 2012, 02:46:05 PM »

I have two small doors that have the Newell type on them, never looked at them that close, never knew you could adjust them. Grin
Logged

1968 MCI 5A with 8V71 and Allison MT644 transmission.  Western USA
Oonrahnjay
Hero Member
*****
Offline Offline

Posts: 1343





Ignore
« Reply #23 on: July 27, 2012, 03:20:32 PM »

  I have a whole (dozens) bunch of this type:(lower right corner ones cept mine the actuator buttons are square not rounded).

     What was your source for buying these (or brand name)?  Thanks,  BH  NC USA
Logged

Bruce H; Wallace (near Wilmington) NC
1976 Daimler (British) Double-Decker Bus; 34' long
6-cyl, 4-stroke, Leyland O-680 engine

(New Email -- brucebearnc@ (theGoogle gmail place) .com)
akbusguy2000
Full Member
***
Offline Offline

Posts: 172





Ignore
« Reply #24 on: July 27, 2012, 03:34:10 PM »

I tried several different type before settling on these:

http://www.allegiscorp.com/DisplayPartAction.do?partId=21771&groupId=557&groupElementId=1&displayTemplate=/jsp/displayDetailTemp_15.jsp&cat=Single-Point+Slam+Latches

They work perfectly and hold well, and they are invisible.  Look around their site - they have every imaginable latch and you may find some to your liking:

http://www.allegiscorp.com/jsp/products.jsp?cat=all

tg
Logged
robertglines1
steam nut
Hero Member
*****
Offline Offline

Posts: 3969





Ignore
« Reply #25 on: July 27, 2012, 04:13:48 PM »

Bottom of draws glue a small wood wedge that just catches inside of cabinet cross bar. you must lift up about 1/8 inch to open drawer. when you push in the wedge rides up over cross piece.  It has worked on several coaches for 20 plus years. Yes  on doors mechanical ones are better.  My new build came with self closing hardware that holds  draws and doors firm until you pull hard on them.   Bob
Logged

Bob@Judy  98 XLE prevost with 3 slides --Home done---last one! SW INdiana
